THE EFFICIENCY OF LED, THE ALLURE OF COLOR

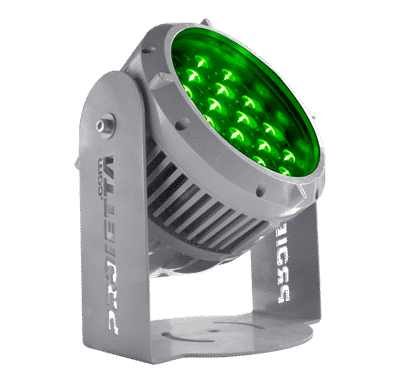

The color-changing spotlights are RGBW LED architectural projectors with millions of combinable color variations. Thanks to the Master/Slave function, it is possible to combine chromatic variations simultaneously among multiple LEDs of the same family. Easy to install and use both indoors and outdoors, color-changing spotlights are a high-impact product, ideal for architectural projections and creating suggestive chromatic atmospheres.
RGB – IP66 – DMX AND MASTER/SLAVE
TECHNICAL DATA
Imput Voltage: AC 100-240 V (47-63 Hz)
Power: 98 W
Source: 54 LED (18R, 18G, 18B)
Colors: 16.000.000
LED lifetime: 50.000 hours
Controls: 4 buttons menu (4 digits display); DMX512; Master/Slave
Waterproof rating: IP66
Minimum ambient temperature: -25 °C
Maximum ambient temperature: 45 °C
Weight: 7 Kg

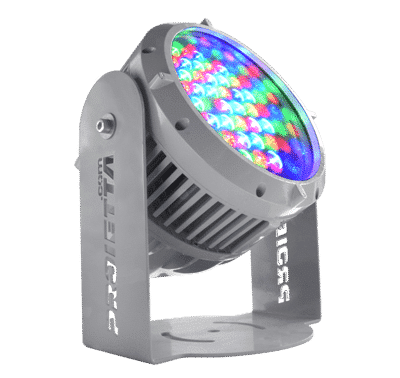

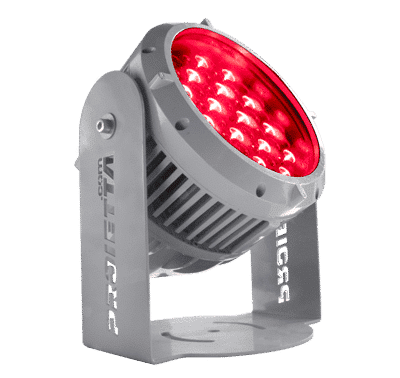

NARROW BEAM 15° RGB
DOWNLOAD - INSTRUCTION MANUAL AND TECHNICAL MATERIAL ARCHILED RGB 15°
MEDIUM BEAM 25° RGB
DOWNLOAD - INSTRUCTION MANUAL AND TECHNICAL MATERIAL ARCHILED RGB 15°
WIDE BEAM 45° RGB
DOWNLOAD - INSTRUCTION MANUAL AND TECHNICAL MATERIAL ARCHILED RGB 45°

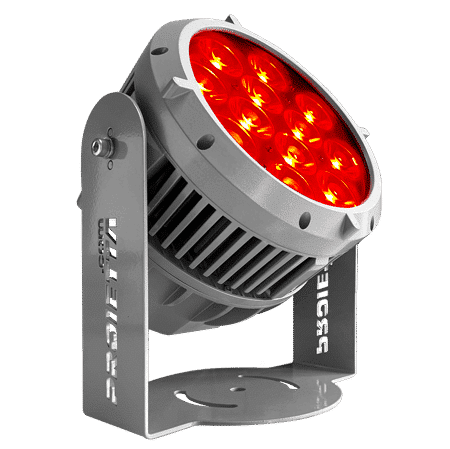

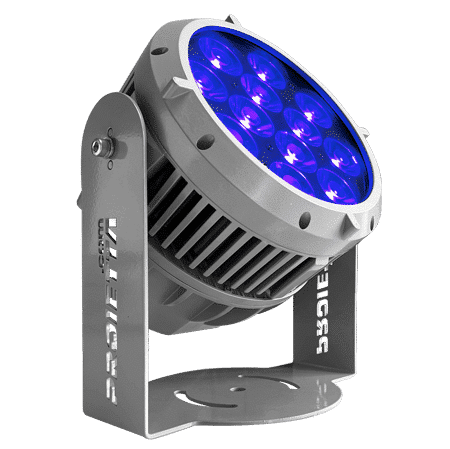

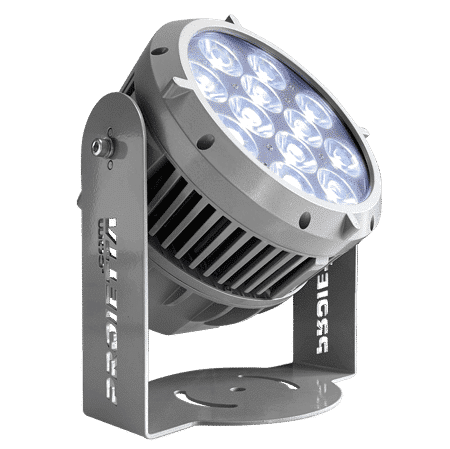

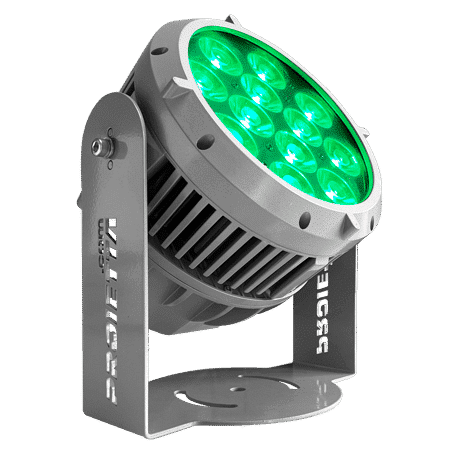

RGBW MODEL
TECHNICAL DATA
Imput Voltage: AC 100-240 V (47-63 Hz)
Power: 200 W max (R: 100%, G: 100%, B: 100%, W: 100%)
Source: 12 LED RGBW 4-in-1
Available angles: 45°
Colors: 16.700.000
LED lifetime: 30.000 h
Waterproof rating: IP66
Controls: 4 buttons menu (4 digits display); DMX512; Master/Slave
Minimum ambient temperature: -25 °C
Maximum ambient temperature: 45 ° C
Weight: 7kg

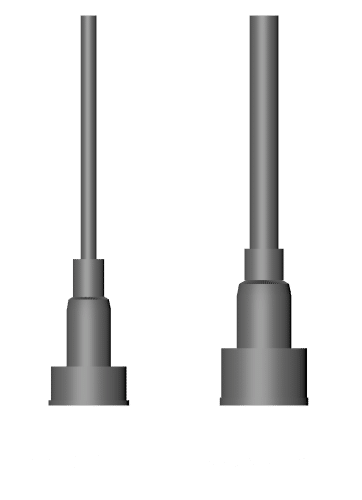

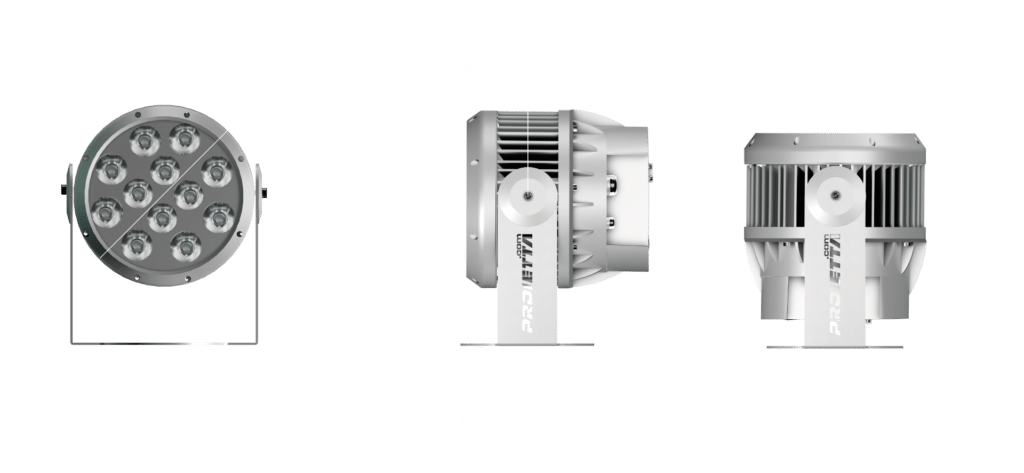

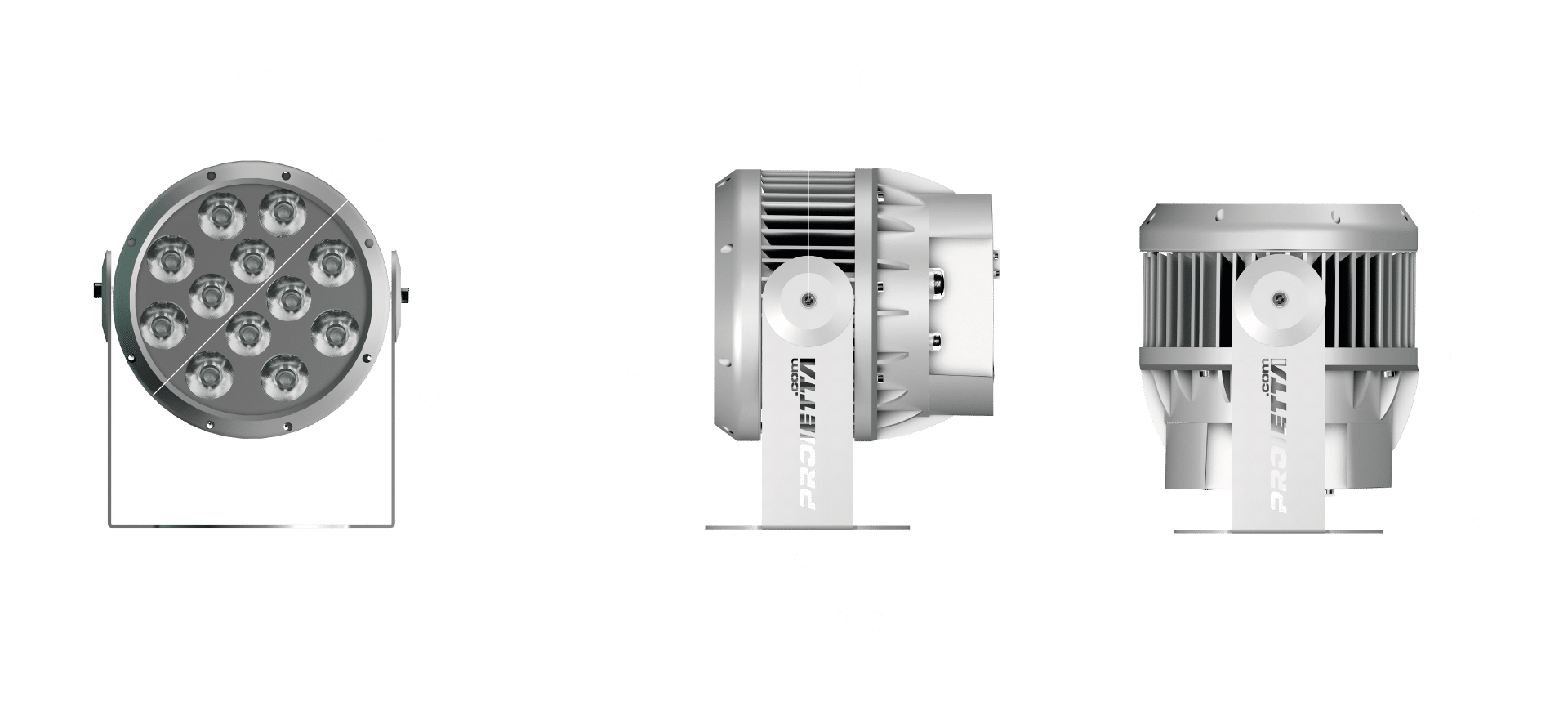

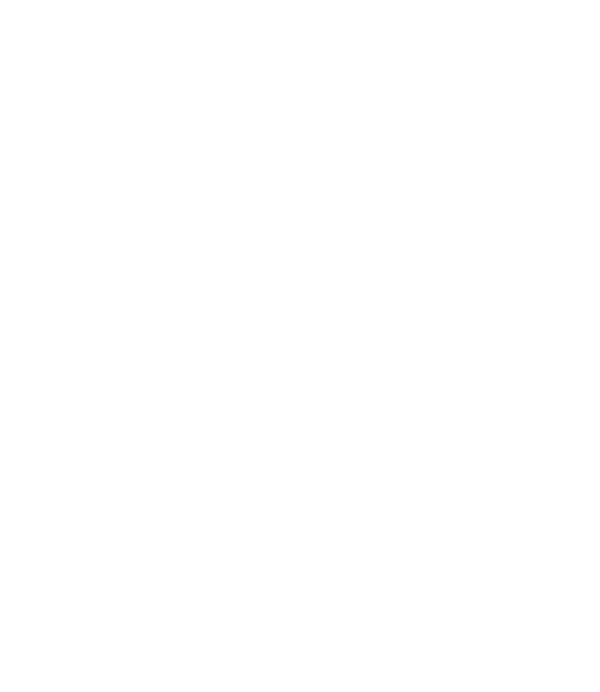

MAXIMUM DIAMETER OF THE
LARGEST CONNECTORS
DOWNLOAD THE PHOTOMETRIC DIAGRAMS
ASK FOR THE EULUMDAT FILES

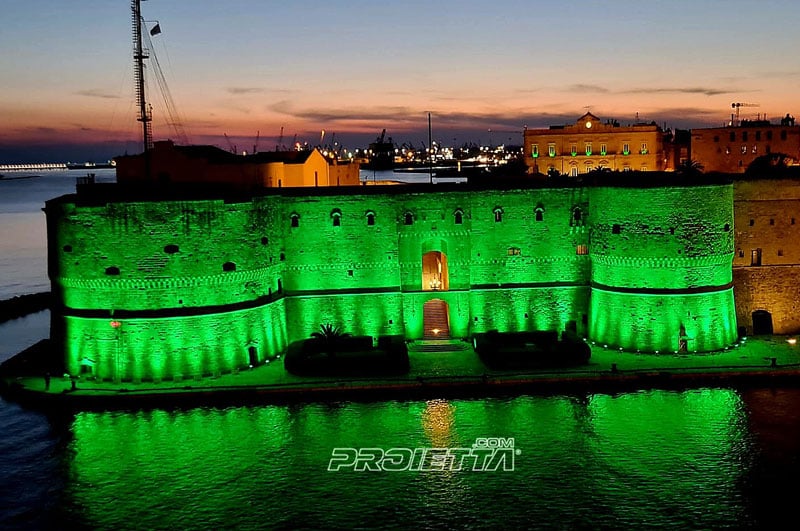

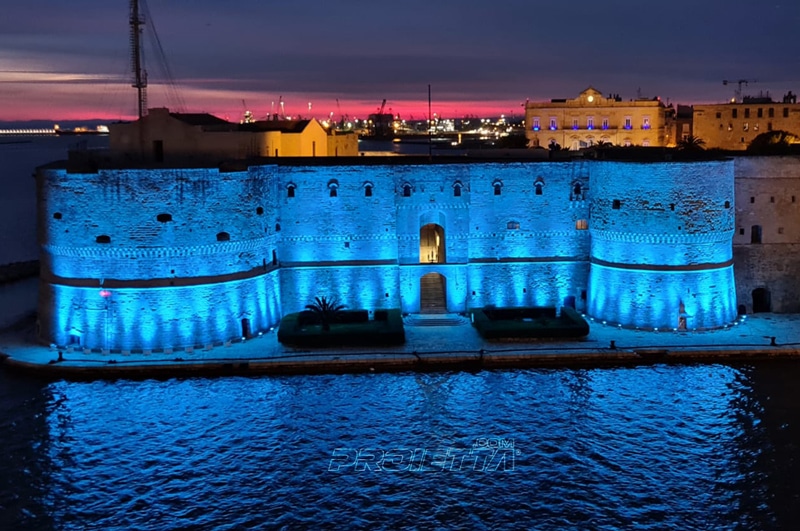

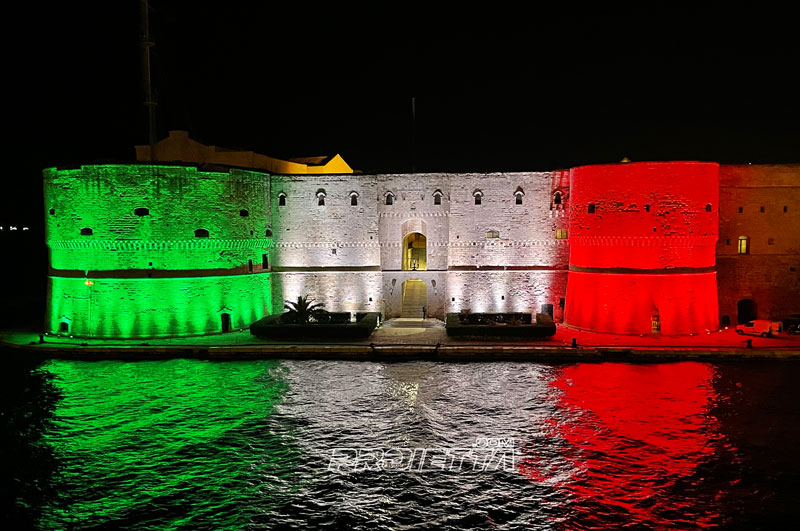

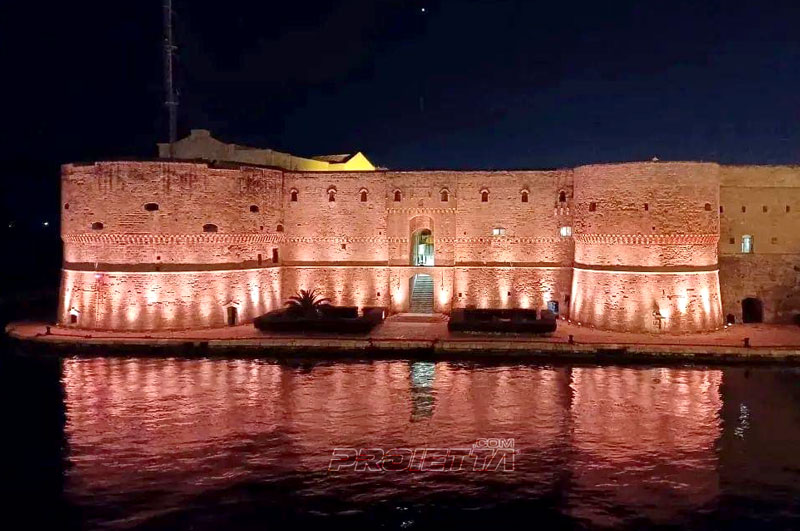

Aragonese Castle of Taranto Illuminated with spotlights PROIETTA Archiled RGBW

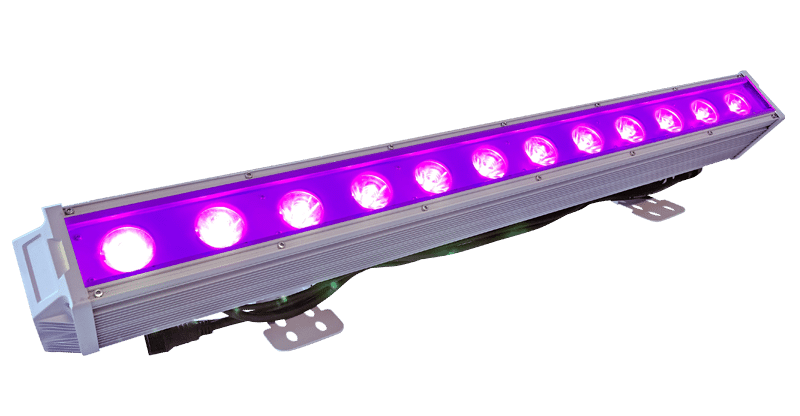

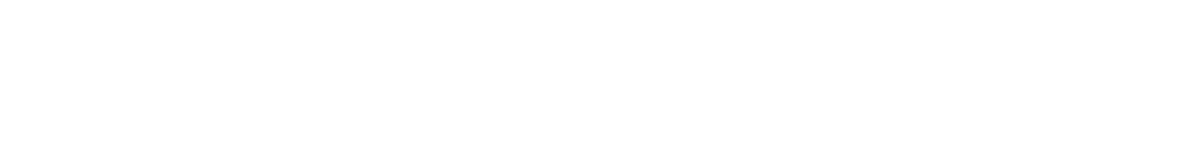

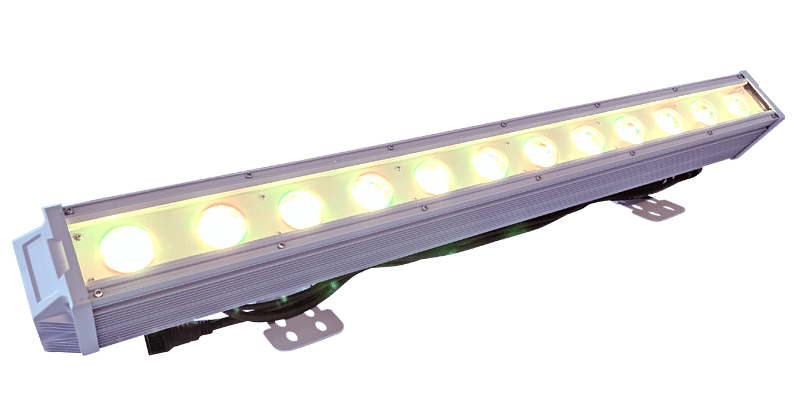

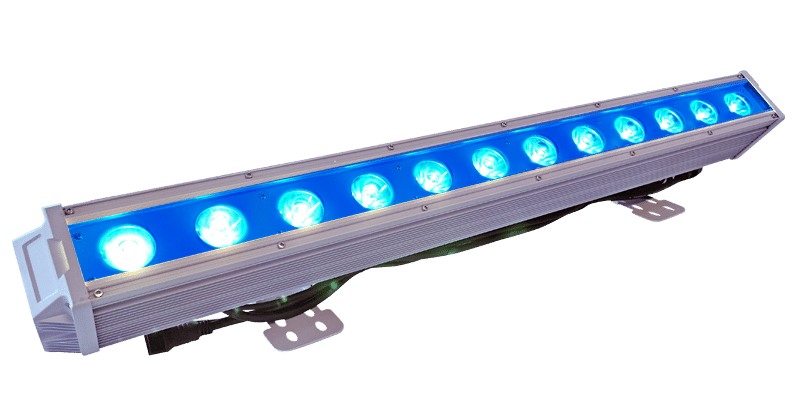

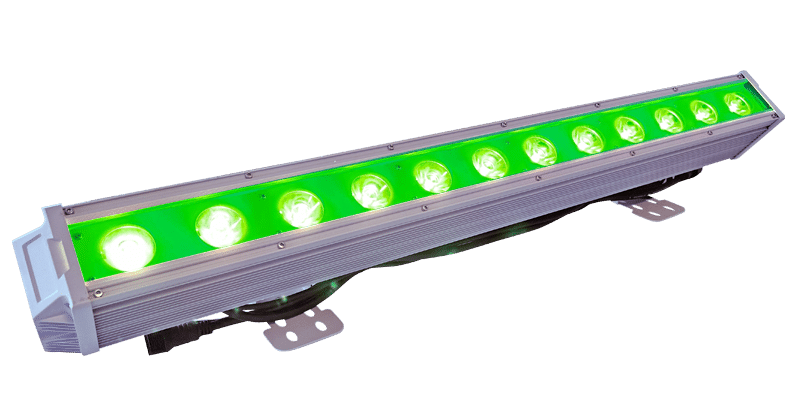

RGBW LED BAR
Voltage: AC 100-240 V (47-63 Hz)
Power: 200 W max (R: 100%, G: 100%, B: 100%, W: 100%)
Light Source: 12 RGBW 4-in-1 LEDs
Colors: 16,700,000
Lifespan: 30,000 hours
Control: DMX 512; Master/Slave
IP (ingress protection rating): IP66
Minimum ambient temperature: -25°C
Maximum ambient temperature: 45°C
